Anyone who has owned a paint sprayer for more than a couple of seasons eventually runs into the same problem. The machine that used to spray a clean, even pattern starts sputtering, or it will not build pressure the way it used to, or paint starts showing up somewhere it should not be. At that point you are stuck making a decision with incomplete information: replace a part, replace several parts, or replace the whole sprayer. Most of the time, the right answer is a lot cheaper and simpler than people expect, but only if you can correctly identify what actually failed.
This is where a lot of otherwise capable DIYers and even some working painters get stuck. Not because the repair is hard, but because narrowing down which part is causing the problem takes a bit of a system, and most people do not have one the first time they run into an issue.
Match the Symptom to the System, Not a Guess
Every symptom a sprayer produces points back to one of a few systems, and figuring out which one saves you from buying parts you do not need.
If the sprayer will not build pressure at all, or pressure drops off partway through a job, the issue is almost always in the pump itself. This usually means a worn piston, a failing inlet or outlet valve, or packings that have dried out and lost their seal. These are the parts doing the actual work of pushing paint through the system, and they wear from constant friction and exposure to paint and cleaning solvents.
If the pattern coming out of the gun looks uneven, split, or tailed instead of a clean fan, look at the tip first. Tips are made from hardened material specifically because they wear from abrasive paint passing through a tiny orifice at high pressure, and a worn tip is often mistaken for a bigger mechanical problem when it is really just consumable wear.
If you are seeing paint or fluid leaking somewhere it should not, whether around the pump housing, at a hose connection, or from the gun itself, that is a sealing issue. Depending on where the leak is, this points to packings, O-rings, or a worn gasket, none of which are expensive but all of which need to be matched exactly to your machine.
And if the motor will not run at all, that is a different category entirely, usually electrical rather than mechanical, involving brushes, a capacitor, or a control board depending on the model.
Why Guessing Costs More Than It Saves
It is tempting to just order the part that seems most likely and see if it fixes things. Sometimes that works. Often it does not, and here is why that approach ends up costing more time and money than doing a bit of diagnosis first.
Graco sprayers share design families, but the actual components are not interchangeable across every model. A packing kit that fits one machine in the Ultra Max lineup might be close, but not correct, for a different model in the same family. If you order based on a guess and it turns out to be slightly wrong, you are not just out the cost of the part, you are also looking at another shipping delay before you can get back to work.
There is also a compounding risk with pump components specifically. Installing a part that is a near match but not an exact fit can cause uneven wear on the parts around it, which sometimes turns a small original problem into a bigger one within a few months. This is the main reason experienced technicians insist on matching parts to an exact model and serial range rather than assuming a general fit.
Using a Diagram Instead of a Description
The single most useful tool for correctly identifying a failed part is a diagram, not a written description. Sprayer pumps and guns are made up of small components stacked in a specific sequence, and a written part description like “inlet valve kit” does not tell you much if you are looking at a disassembled pump and trying to figure out which piece in front of you matches that description.
An exploded diagram with numbered callouts solves this directly. You can visually compare what is in your hand, or what you see on the machine, to the labeled diagram and confirm you are ordering the correct component before you commit to a purchase. This is especially useful for anyone tackling a repair for the first time, since it removes the guesswork of matching a part name to a physical object you may not recognize.
Where to Start Looking
If you already know your symptom points to a pump issue, a category built specifically around graco paint sprayer parts organized by model is a much faster starting point than a general search, since it keeps you within parts actually built for your type of machine rather than sorting through unrelated listings.

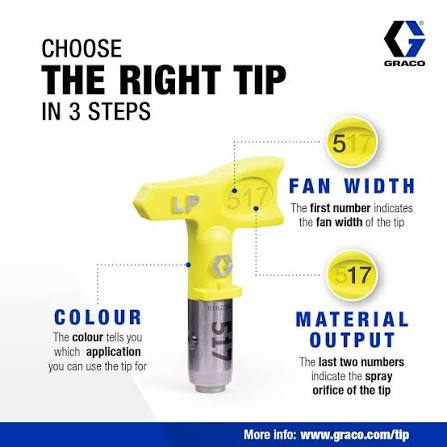

If the issue is pattern related, checking a page dedicated to graco spray tips is worth doing even if you are not sure the tip is the problem, since tip sizing charts on these pages make it easy to confirm you are even running the correct tip size for your job, not just whether the current one is worn out.
When the Repair Turns Out to Be Bigger Than Expected
Occasionally, what looks like a simple part replacement turns into something bigger once you get the machine open. If you find multiple worn components at once, or if the pump housing itself shows damage rather than just worn internal parts, it is worth stepping back and comparing the total repair cost to the cost of a newer or higher tier machine before committing to the fix. This is not the outcome for most repairs, but being honest about it upfront is better than sinking money into a machine that is past the point where repair makes financial sense.
A Quick Example
Say a sprayer starts losing pressure about ten minutes into a job, then seems to recover after you stop and restart it. That pattern, pressure dropping under load and coming back after a reset, points toward the prime or foot valve rather than the tip, since a tip problem shows up as a pattern issue, not a pressure cycle. Knowing that before you order anything means you go straight to the valve kit instead of replacing a tip that was never the problem, saving both money and a second round of shipping. The same logic applies in reverse. If the pressure gauge holds steady but the fan pattern looks tailed or split at the edges, that almost never traces back to the pump at all, and opening up the pump housing in that situation just adds unnecessary downtime for a repair the tip alone would have solved.
The Takeaway
Correctly identifying a failed part comes down to reading the symptom carefully, understanding which system it points to, and confirming fitment with a real diagram rather than a guess. It takes a little more time upfront than just ordering the first listing that looks right, but it is the difference between a repair that gets you back to work in a day and one that turns into a week of trial and error.
